Chuck ZK Mini Chuck 6 ZK 30 Mini
Industries:
Suitable for:
Precise clamping of very small parts with minimal space requirements

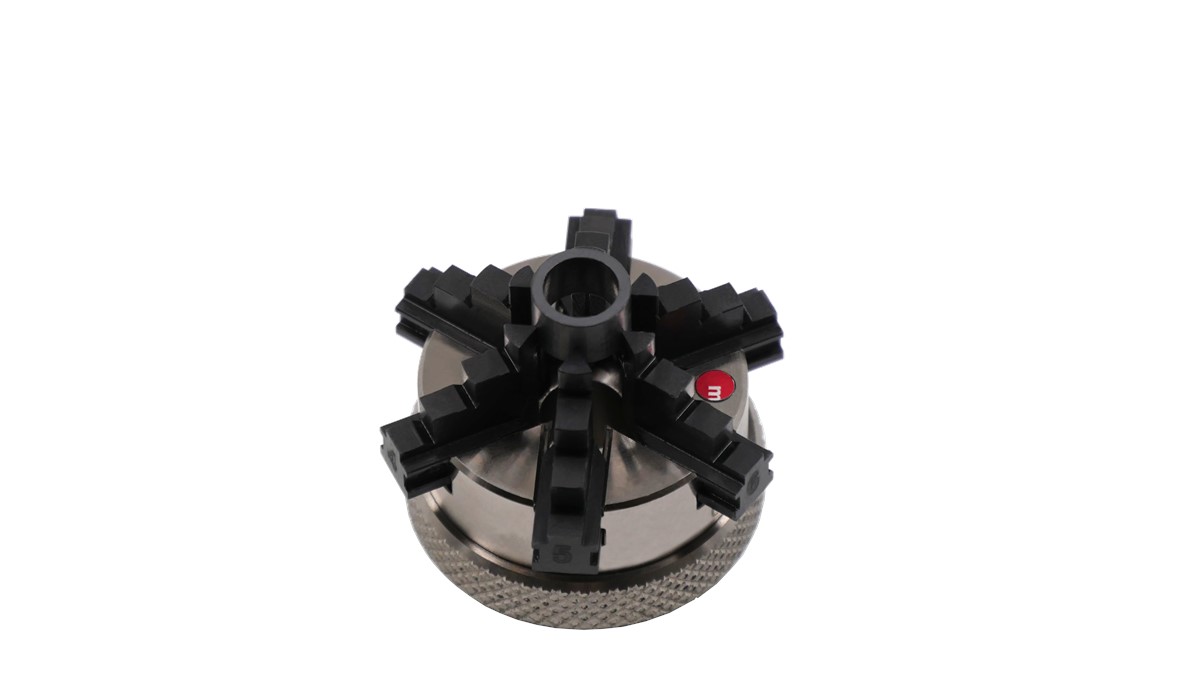

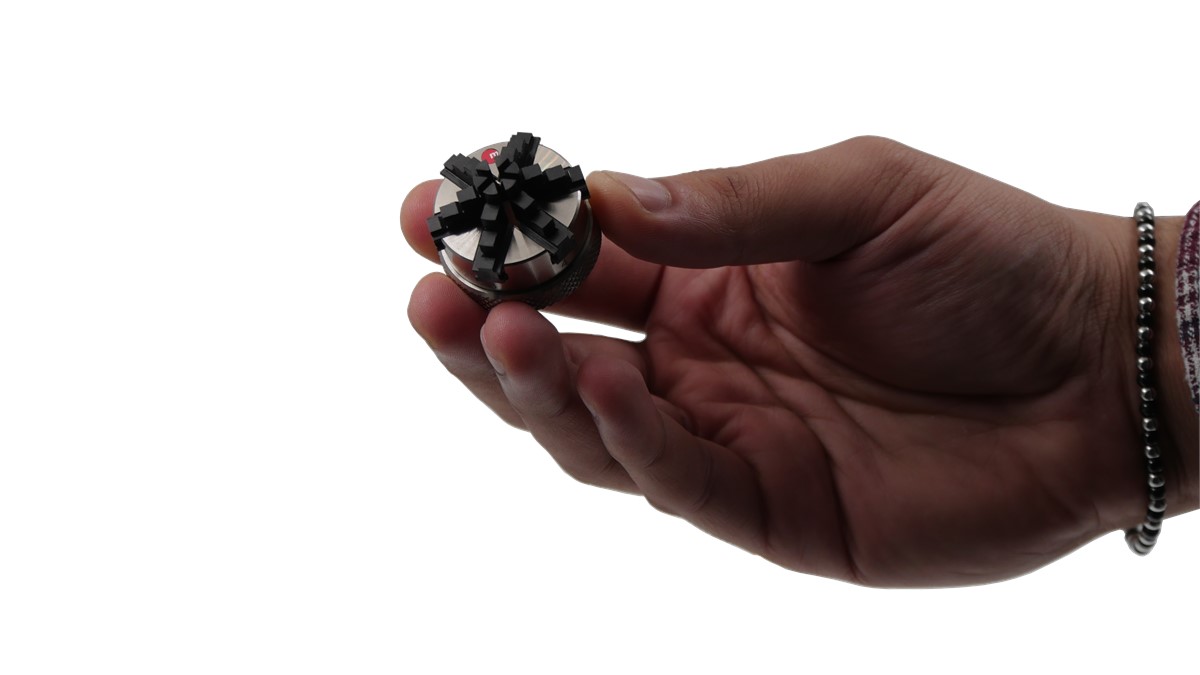

The smallest and most precise 6-jaw chuck in the world. With a diameter of Ø = 30 mm - for clamping small shafts from 0.6 mm, or rings from 6 mm internal diameter. Equipped with 2 sets of jaws for clamping from the inside or outside, each consisting of 6 jaws for optimum and careful clamping of delicate workpieces. Concentricity 20μm and made of stainless steel.
Chuck
- 6 jaw chucks
- Diameter: 30

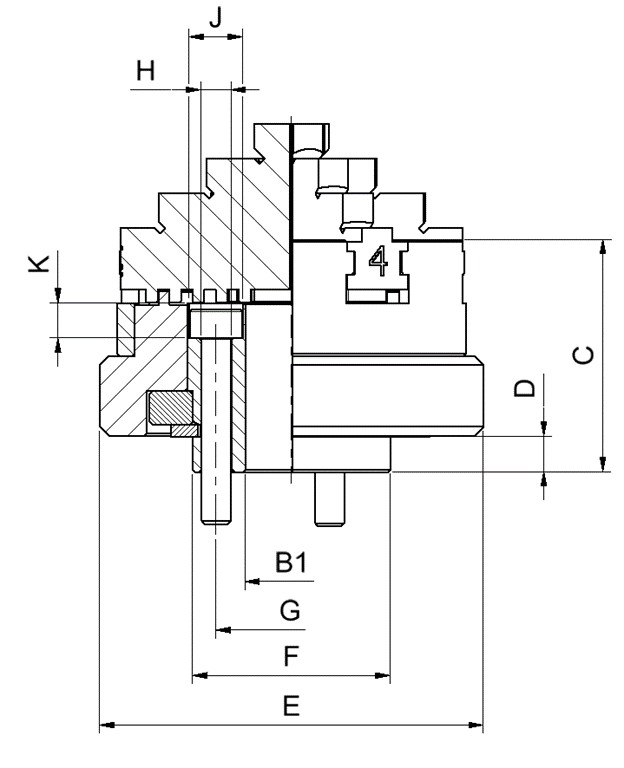

Dimension
6 ZK Ø | 30 |
|---|---|
B1 Ø | 8 |
C | 20 |
D | 3 |
E Ø | 33 |
F 0 / +0.01 Ø | 17 |
G Ø | 13 |
H Ø | 3 x 2.6 |
J Ø | 4.6 |
K | 3 |
Weight in kg, approx. | 0.1 |
Technical data
- Permissible speed up to 6000 rpm.
- Also for underwater use, e.g. wire erosion (EDM)
Options
- Other sizes on request
- Corrosion-protected (Reinox), see general technical data
Top jaws & shanks
- We also realize special shapes according to your workpiece
- Top jaws in aluminum, brass or corrosion-protected (Reinox), see AtD, available according to customer requirements
