Chuck Faceplate JF
Industries:
Suitable for:
Easier machining of metallic parts, precise measurement of components

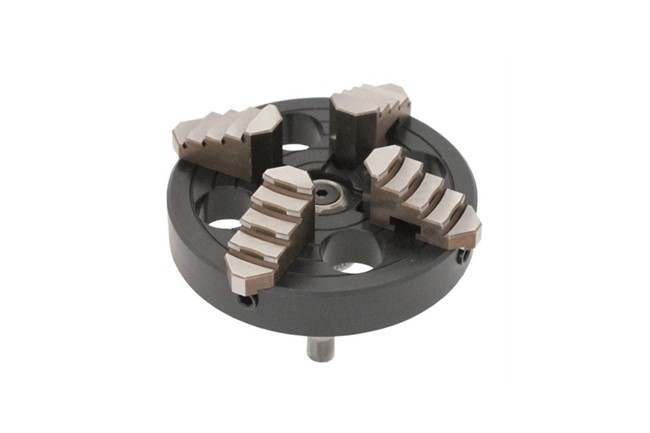

Ultra-flat small clamping disc with 4 hard, individually adjustable reversible jaws

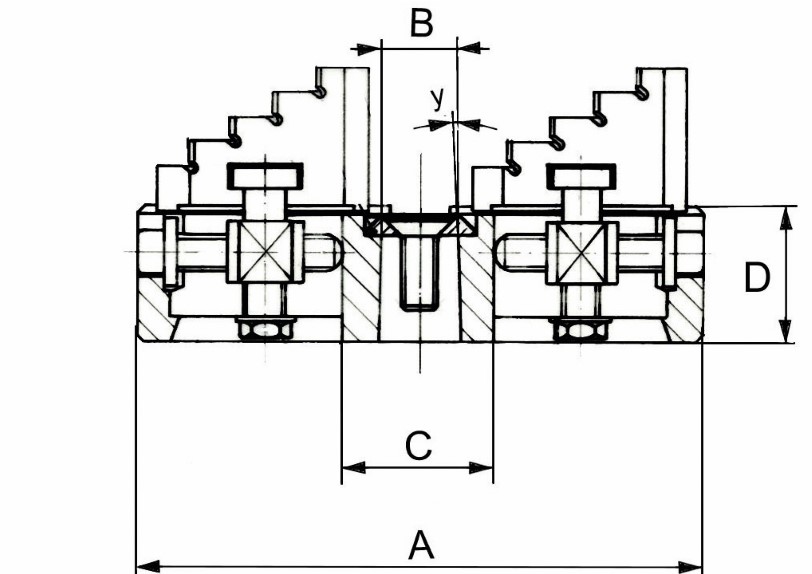

Dimensions
A | B | C | D | E | F | G | y | kg |
|---|---|---|---|---|---|---|---|---|
70 | 9.13 | 18 | 13 | 14 | 12 | 27 | 1° | 30’ | 0.3 |
Inside clamping | 20-65 |
|---|---|
Outside clamping | 16-62 |
Technical data
- Planar run: 10 μ
- Incl. open-end wrenches and allen keys
- Corrosion-protected (Reinox)
Options
- Special diameters on request
- Corrosion-protected (Reinox)
Jaws
- We also create special shapes according to your workpiece
- Top jaws in aluminum, brass or corrosion-protected (Reinox)
