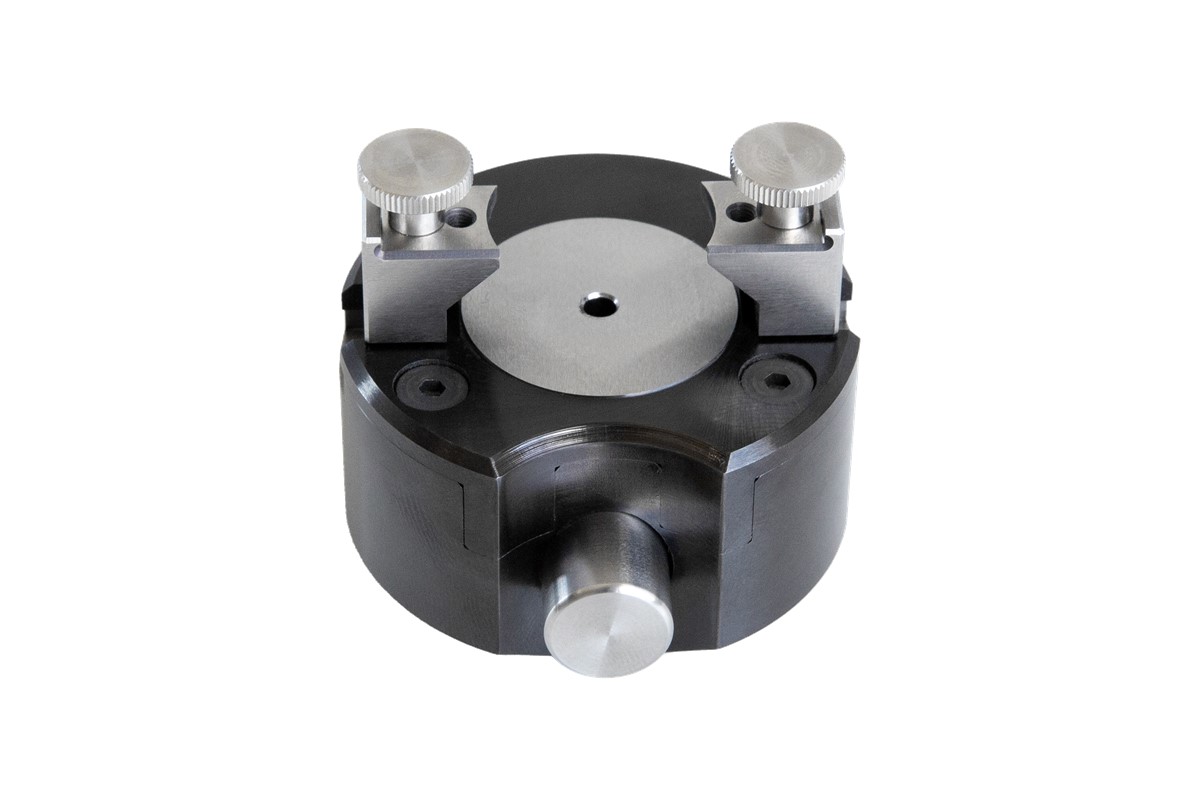

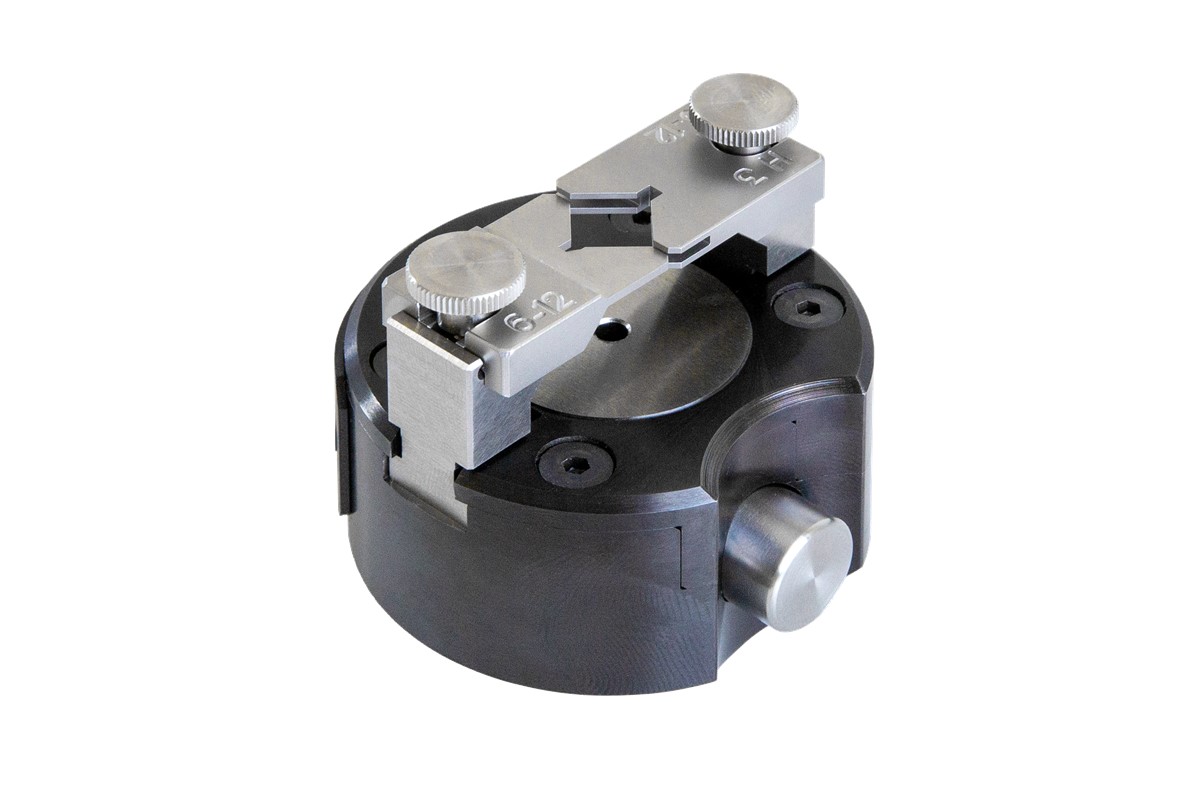

The Dual-Fix from Maprox offers a fast and precise solution for various clamping tasks. The modular system enables manual or pneumatic actuation and adapts flexibly to internal and external clamping.
The system is known for its easy handling and high process reliability, making it an ideal choice for various clamping tasks. With a clamping range of 2-27 mm for internal and 0-30 mm for external clamping and a jaw travel of 10 mm, the Dual-Fix offers versatile application possibilities. The corrosion-protected design and the possibility of adjustment with different jaws and stops guarantee reliable performance and optimum accessibility of the probe.
Types & Usage
Types
Type | Art. No. | Remarks |
|---|---|---|
External clamping, manual | QKAMND | not rotatable |
External clamping, pneumatic | QKAPND | Rotatable (only with rotating union) |
Rotatable (only with rotating union) | QKIMND | not rotatable |
Internal clamping, pneumatic | QKIPND | Rotatable (only with rotating union) |
Usage
- With MK2 shank ideal for form measuring devices
- Purchasing product with many accessories:
- Various top jaws
- Depth stop
- Shanks
- Rotary feed-through (for pneumatic version)
- In manual and pneumatic versions
- Version for internal and external clamping
- Clamping by means of spring force
- More precise guidance of the base jaws currently under development for better concentricity accuracy
Top jaws & shanks
- Top jaws according to customer requirements
- Shank to customer interface
